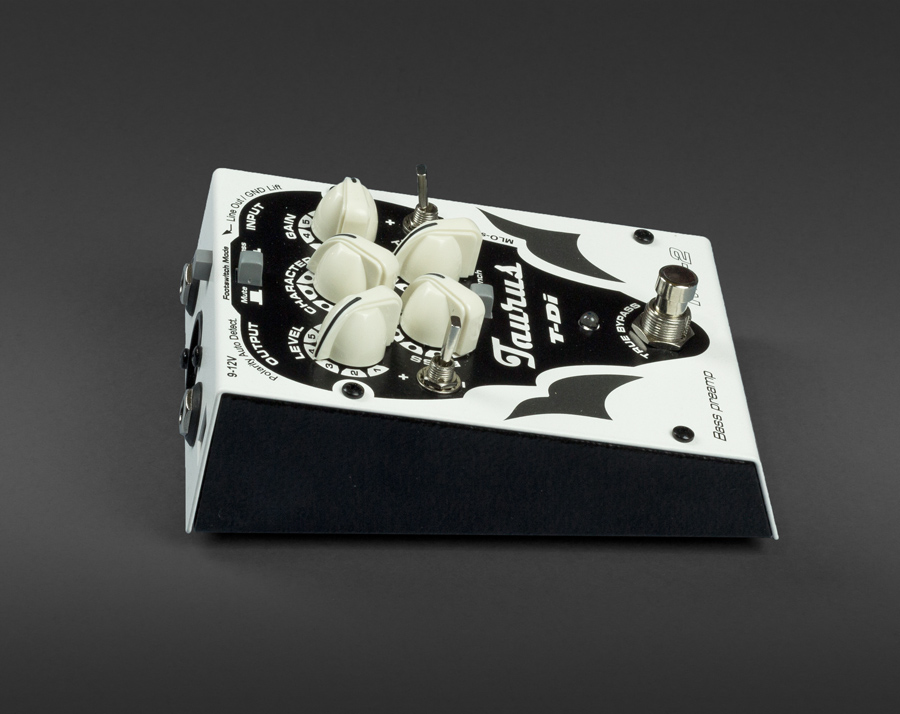

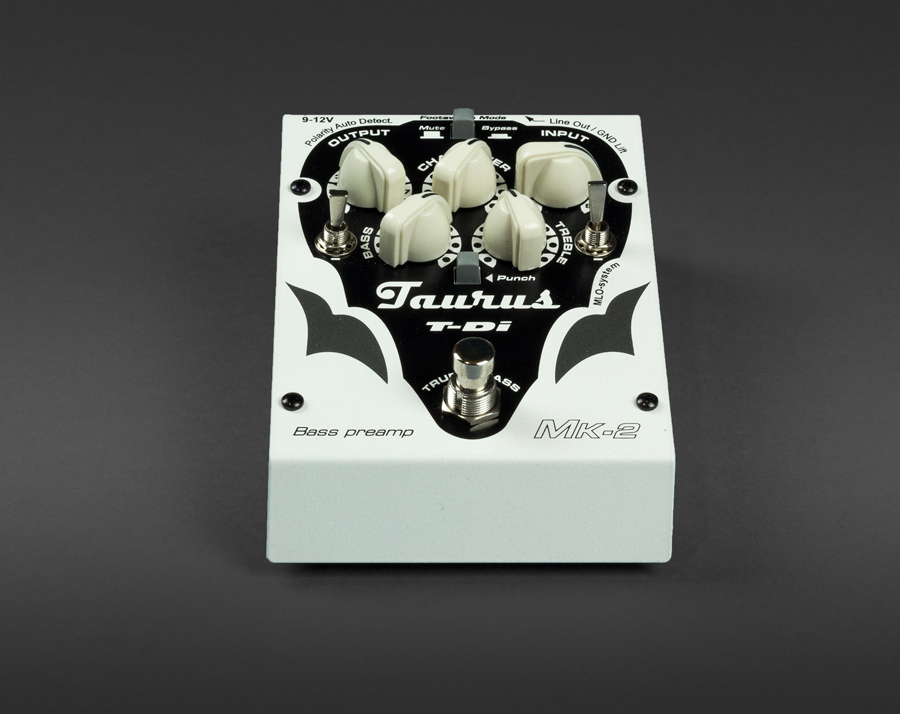

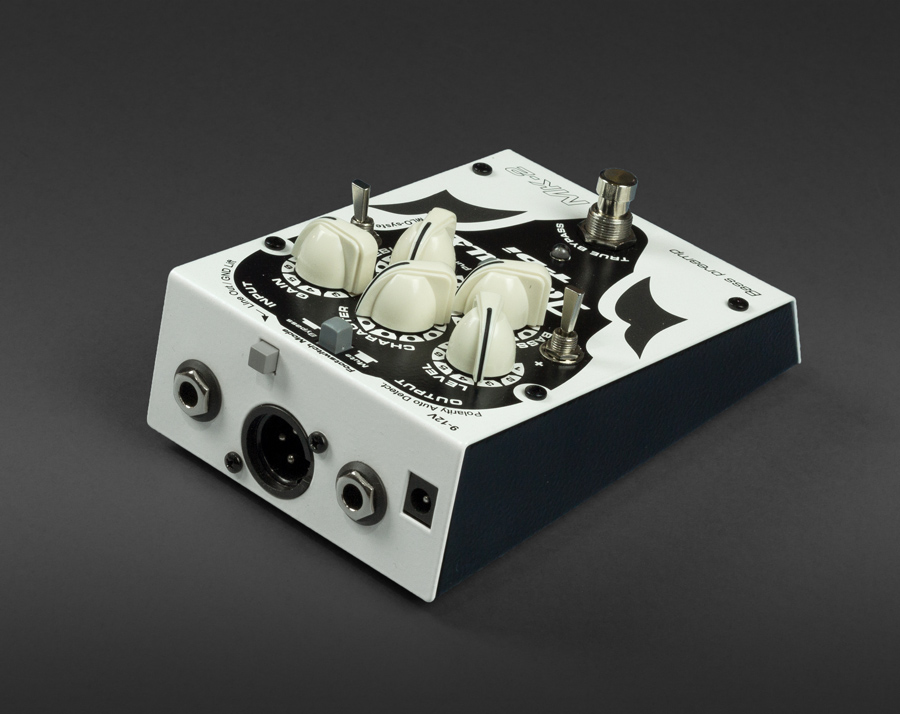

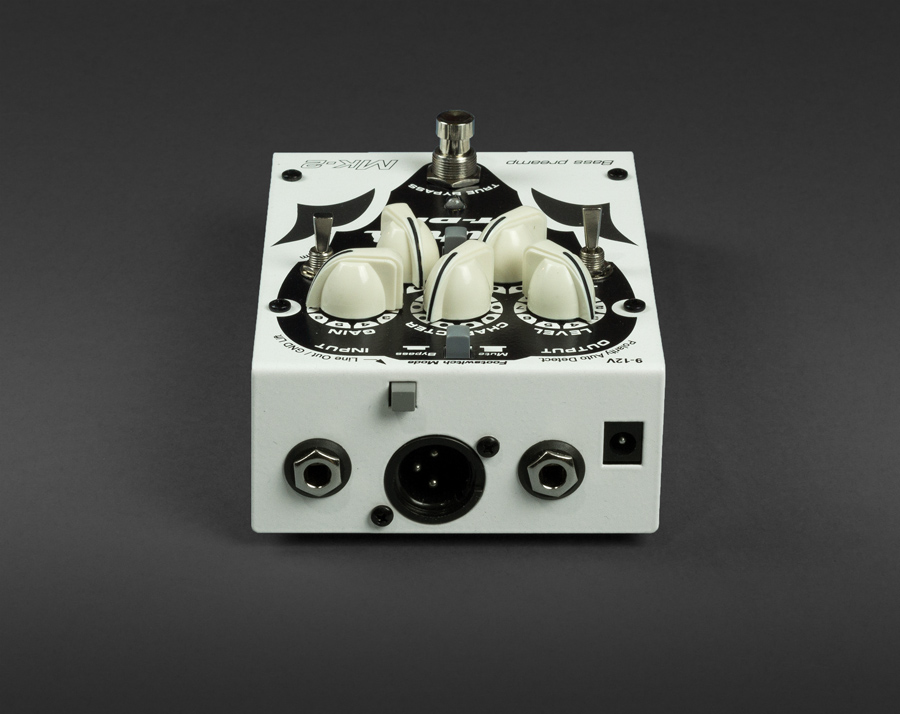

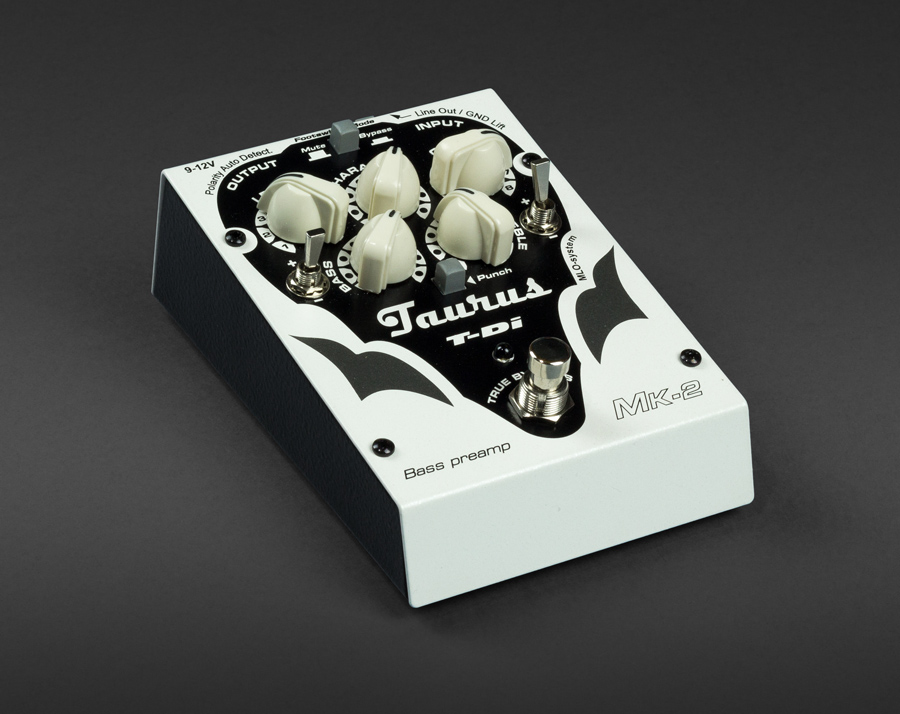

T-Di Mk2

Taurus T-Di Mk2 is a preamp in a foot pedal. It is a great alternative solution to an amplifier providing solid and powerful bass sound. It can also be used as a booster for your amplifier. You can connect it directly to a mixing console on stage or in a recording studio as well as to "Hi-Fi" equipment. You can use it as a typical Di-box or simply plug it into your arsenal of pedal effects.
MLO System provides unique and extremely comfortable creation of the sound. It is designed in very intuitional and user-friendly way leaving the user with only two knobs: bass and treble. The proprietary MLO System installed in all Taurus Bass amps ensures an optimal mid frequencies proportion, depending of both bass and treble knobs positions. It offers groundbreaking possibilities, intuitionally supporting musician's choice and changes of the sound. In addition the MLO system ensures the same level of the output volume despite of how far the low frequency control knob is positioned. Unlike with standard solutions, the musician will immediately appreciate the change of the instrument's tone while the volume remains unchanged.

LEVEL volume level knob
CHRACTER “Mix knob” between “Vintage” & “Modern”sound
GAIN input gain preamp adjustment

BASS low frequency level control with MLO system
Triple  BASS-switch to reduce or boost low frequency
CUT/OFF/BOOST

TREBLE high frequency level control with MLO system
Triple  TREBLE-switch to reduce or boost high frequency
CUT/OFF/PRESENCE
PUNCH midrange effectiveness switch
FOOTSWITCH MODE true bypass/mute footswitch mode selector

MLO EQ - TECH INFO:
BASS: 40Hz +/-8dB @450Hz -/+4dB
BASS Boost/Cut: 60Hz +/-6dB
TREBLE: 4,5kHz +15dB / 6kHz -15dB
TREBLE Boost/Cut: 7kHz +/-6dB
PUNCH: 300Hz +7dB

POWER SUPPLY VOLTAGE RANGE 9-12V: any power supply with power rating between 9 and 12V can be used
DC ASSISTANT - protects from loss of signal. Effect switches automatically to the "bypass mode" in case of disconnection or low voltage of DC supply.

DC CONVERTER: Built-in voltage converter which increases voltage of effect's  power supply to 24V. It guarantees very high sound's dynamic (headroom) and eliminates any problems related to active electronics installed in the guitar.

Subsonic filter: built-in filter which cuts-off very low frequencies which have an adverse impact on the proper work of the speakers. Thanks to the filter, the unwanted frequencies and the accompanied components of the DC voltage are eliminated from the sound. Both components interfere with proper speaker operation by entering uncontrolled membrane fluttering when the low frequencies are applied.

Dimensions: (H x W x D) 65 x 96 x 144mm
Weight: 0,5kg
